| Material: | ABS/PBT | FTTH Socket connector:: | SC |
|---|---|---|---|
| Capacity: | 48 core | Protection grade:: | IP65 |
| Color: | White / Gray | Size: | 450x180x150mm |
| Application:: | FTTH | N.W.: | 3.2KG |
| Resaltar: | PBT Fiber Optic Distribution Box,ABS Fiber Optic Distribution Box,IP65 Fiber Optic Distribution Box |
||

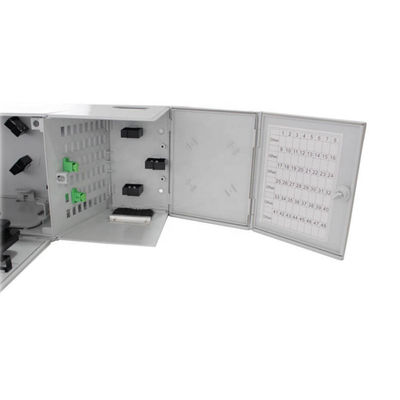

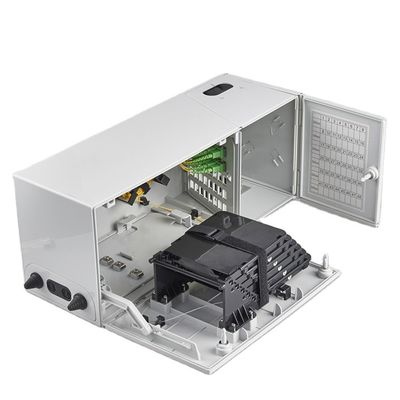

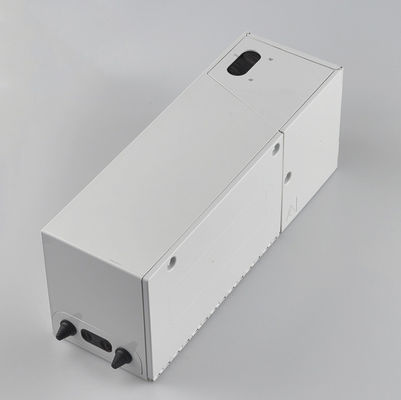

48 Core Outdoor IP65 ABS PBT Fiber Optic Distribution Box
48 core outdoor fiber optic distribution box optical termination box wall mounted 2-48 cores patch panel
Fiber Distribution Box (FDB) is available for the distribution and terminal connection for various kinds of optical fiber system. It is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to fix and splice with pigtails. It can be installed on the wall adapt with variety of optical connection styles. Optical Distribution Frame can be managed effectively. It is also available for PLC Splitter.
Finetelecom offers 2 ports, 4 ports, 6 ports, 8 ports,12 ports, 24 ports, 48 ports and 96 ports Fiber Distribution Box, and they are made of PC/ABS.
|
Dimension(LxWxH)
|
450x180x150mm |
|
Splicing Tray
|
6pcs |
|
Max.capacity
|
48 cores
|
|
Material
|
ABS or PC+ABS available
|
|
No. of Adapter
|
SC |
|
Working Temperature
|
-25°C - 60°C (5 to 95% relative humidity) |
|
N.W.
|
3.2KG |
Telecommunication area.
Internet service.
CATV
FTTH
Wall mounting and pole mounting installation
FTTH pre-installation and filed installation
