| Product name:: | SC APC, 1*16 optical PLC splitter | Package Type:: | Steel Tube,Mini Type |
|---|---|---|---|
| Fiber Type:: | 0.9mm Singlemode Optical Fiber Cable | Fiber Connector:: | SC/APC SC/UPC |
| Capacity:: | 1x2,1x4,1x8,1x16,1x32,1x64 Steel tube type plc splitter | Application:: | FTTx Solutions |
| Resaltar: | SC APC 1x4 Fiber Optic Splitter,SC APC 1x4 Splitter,FTTH 1x4 Fiber Optic Splitter |
||

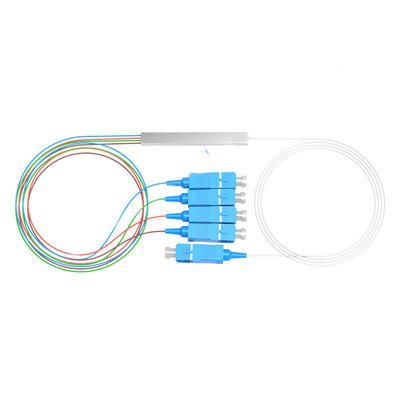

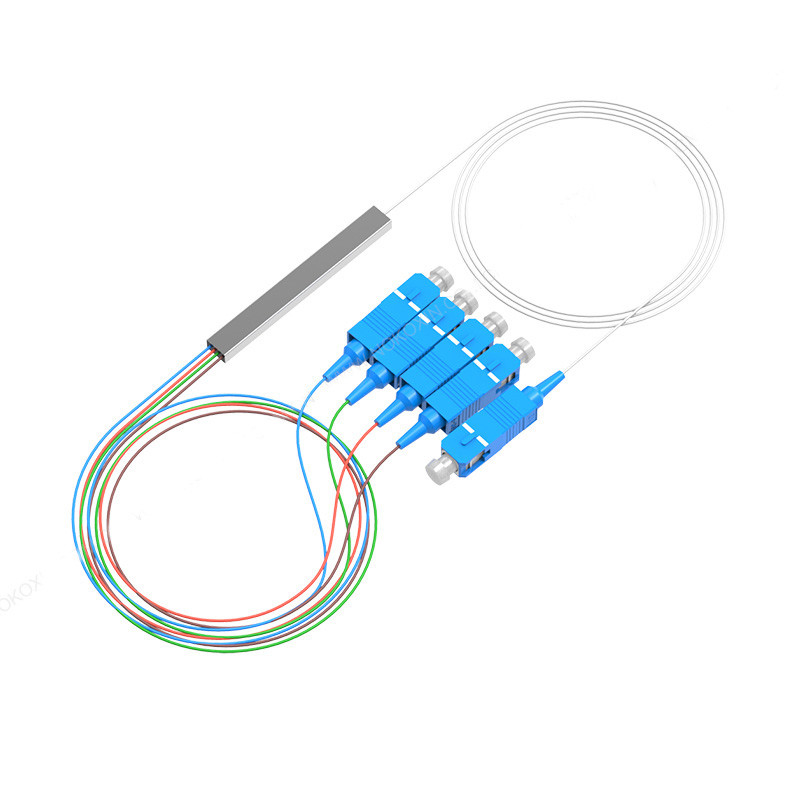

SC APC 1x4 Fiber Optic Splitter For FTTH Solution

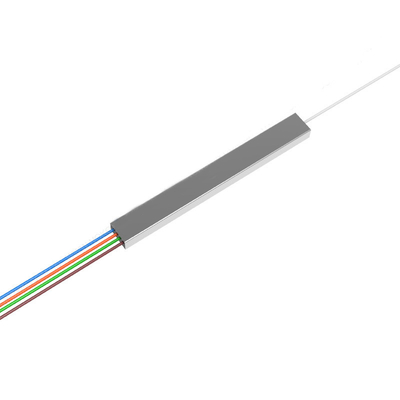

Supply 1*2/1*4 /1*8 /1*16/1*32 plc splitter 0.9mm mini type optical fiber splitter with SC APC Connector For FTTH
Description:
FTTH 1x16 SplitterPlanar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
Adopt high strength stainless steel, pass salt spray test
• Ferrule core is less than 0.5um
• Adopt 100% new raw material, ROHS compliance
• Low Insertion loss
• Low PDL Compact Design
• Good channel-to-channel uniformity
• Wide Operating Wavelength: from 1260nm to 1650nm
• Wide Operating Temperature: from -40℃ to 85℃
Key Features
1) Low Excess loss
2) Various Coupling Ratio
3) Environment stable
4) Single mode and multi mode available
Technical Parameters
| 1×16 Single Mode PLC Splitter Data Sheet | ||||||
| Operating Wavelength(nm) | 1260-1650 | Inspected Date | 2017/11/22 | |||
| P/N: | 1x16-PLC-0.9-1.0 | S/N: | 1711116001 | |||
| Fiber Type | G.657A with 0.9mm lose tube | Fiber Length(m) | ≥1.0 | |||
| Connector Type | SC/APC | Package Dimension(mm) | 60×12×4 | |||
| Storage Temperature | -40~+85℃ | Operating Temperature | -40~+85℃ | |||
| Item | IL(dB) | PDL(dB) | RL(dB) | |||
| Wavelength(nm) | 1310 | 1550 | 1310 | 1550 | 1310 | 1550 |
| Spec. | MAX13.6 | MAX 0.25 | ≥55 | |||
| Port1 | 13.11 | 13.34 | 0.03 | 0.03 | Pass | Pass |
| Port2 | 13.26 | 13.41 | 0.03 | 0.03 | Pass | Pass |
| Port3 | 13.28 | 13.15 | 0.04 | 0.03 | Pass | Pass |
| Port4 | 13.39 | 13.09 | 0.04 | 0.02 | Pass | Pass |
| Port5 | 13.35 | 13.03 | 0.03 | 0.04 | Pass | Pass |
| Port6 | 13.48 | 13.40 | 0.04 | 0.04 | Pass | Pass |
| Port7 | 13.33 | 13.45 | 0.03 | 0.02 | Pass | Pass |
| Port8 | 13.26 | 13.33 | 0.04 | 0.03 | Pass | Pass |
| Port9 | 13.02 | 13.33 | 0.03 | 0.04 | Pass | Pass |
| Port10 | 13.46 | 13.38 | 0.02 | 0.03 | Pass | Pass |
| Port11 | 13.27 | 13.25 | 0.02 | 0.04 | Pass | Pass |
| Port12 | 13.46 | 13.15 | 0.04 | 0.02 | Pass | Pass |
| Port13 | 13.24 | 13.17 | 0.04 | 0.03 | Pass | Pass |
| Port14 | 13.15 | 13.42 | 0.03 | 0.04 | Pass | Pass |
| Port15 | 13.32 | 13.44 | 0.03 | 0.03 | Pass | Pass |
| Port16 | 13.02 | 13.19 | 0.03 | 0.03 | Pass | Pass |
| Input | N/A | Pass | Pass | |||
| MAX. | 13.48 | 13.45 | 0.04 | 0.04 | N/A | |
| MIN. | 13.02 | 13.03 | 0.02 | 0.02 | N/A | |
| Average | 13.28 | 13.28 | 0.03 | 0.03 | N/A | |
| Uniformity(≤1.0dB) | 0.46 | 0.473 | Directivity(dB) | ≥55 | ||
