2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame

2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame
2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame 2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame 2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame 2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame

Ampliación de imagen :  2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame

Datos del producto:
Place of Origin: China
Nombre de la marca: CY COM
Certificación: ISO9001,ROHS,TLC,
Model Number: CY-ODF-24
Pago y Envío Términos:
Minimum Order Quantity: 20PCS
Precio: negotiable
Packaging Details: Wooden Frame
Delivery Time: 5-10 days
Payment Terms: T/T, Western Union
Supply Ability: 20K/Month
Descripción detallada del producto
Product name: Fiber Optic Rack Mount ODF Type: Racks & Enclosure
Fiber Capacity: 12, 24, 48, 96 or 144 ports materials: Cold rolled carbon sheet steel
Storage Temperature: -45°C~+60°C size: 482*300*340 mm
Resaltar:

Optical FTTX ODF

,

24 Ports FTTX ODF

,

2U Rack Mount ODF

2U 24 Ports Rack Mount Fiber Optical FTTX ODF



Fiber Optic 19 inch 2U 24 ports Rack Mount ODF Fiber Optical Patch Panel for FTTX



An optical distribution frame (ODF) is a passive device which terminates cables, allowing arbitrary interconnections to be made.


1. DESCRIPTION

The 3U closed frame Optical Distribution Frame is a modulated design with drawable trays inside and constructed from cold-rolled steel. It is available unloaded or pre-installed with your choice of fibre optic adapters and pigtails. It is ideal for indoor fibre optic cables connection storage, distribution and management. It features an interchangeable adapter plate for ease of adapter swapping.



2. Dimensions
Length: 482m x Width: 300mm x Height: 340mm





3. FEATURES
» Latch door
» Constructed from cold rolled steel
» Can be rack mounted and wall mounted
» Can be used in 19’’, 23’’ standard distribution frames
» Suitable for ribbon and single fibre
» Interchangeable adapter plate
» 24C, 36C, 48C, 72C, 96C optional, with or without fibre optic
pigtails and adapters



4. ODF DATASHEET





Environmental temperature: -25 - 55°C
Relative humidity: <85%(when the temperature is below 30°C)
Atmosphere pressure: 70~106Kpa
Insulating resistance: >2×104 MΩ/500VDC
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.

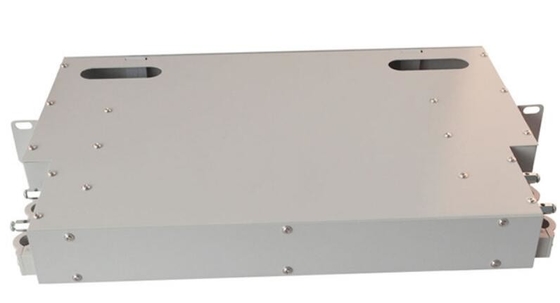

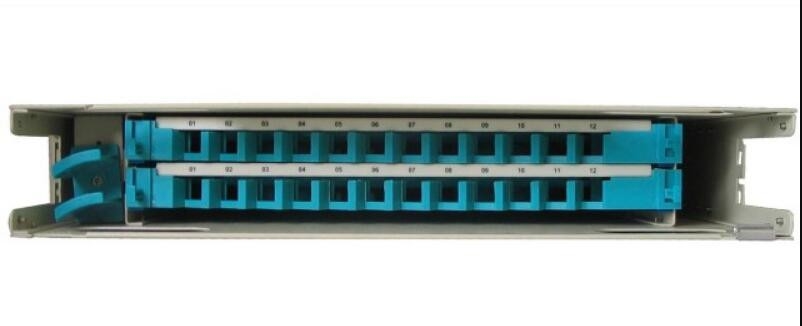

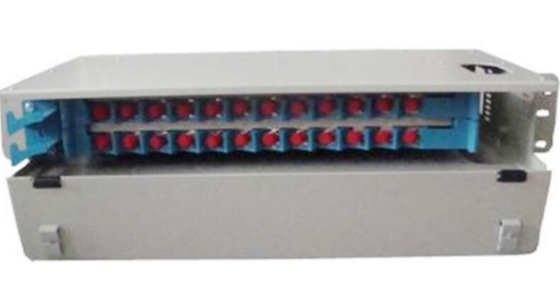

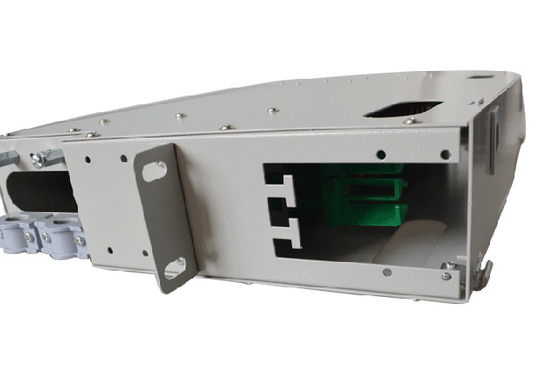

5. ODF FRAME PICTURES

2U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame 02U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame 12U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame 22U 24 Ports Rack Mount Fiber Optical FTTX ODF Closed Frame 3
