| Installation: | Aerial/ Wall Mounting/ Direct Burial | Dimension: | 625*270 (C); 500*270 (B); 400*270 (A) |
|---|---|---|---|
| Sealing Type: | Heat Shrink, Mechanical Seal | Protection Class: | IP68 |
| Cable Port: | 1 uncut, 16 branch | Max qty of splice tray: | 648 (C); 360 (B); 144 (A) |
| Tray Capacity: | 24/ 12/ 6 | Tray Count: | 54 (C); 30/60 (B); 12/6(A) |
| Resaltar: | Splice fibre dome enclosure,Optical fibre dome enclosure,144 Core fibre dome enclosure |
||

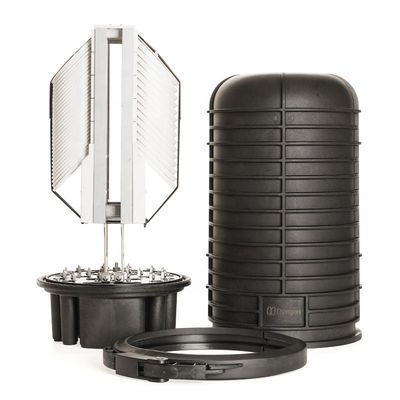

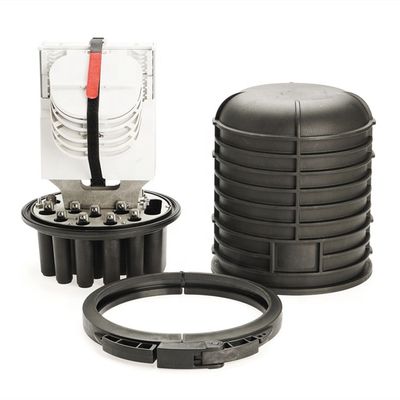

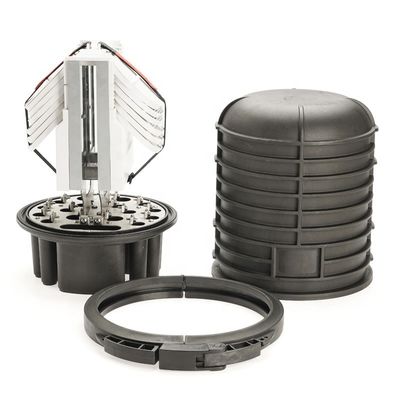

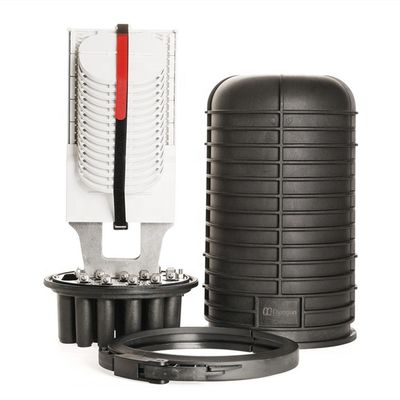

Wall Mounting 144 Core Optical Splice Fibre Dome Enclosure
720 Core 360 Core 144 Core Dome Fiber Optical Splice Closure Dome Enclosure
|
Model No.
|
GPJ09-5817-C
|
|||
|
Style
|
Dome/ Vertical
|
|||
|
Dimensions (H*D)
|
625 × Φ270
|
|||
|
Material
|
PP+GF
|
|||
|
Sealing Type
|
Heat Shrink, Mechanical Seal
|
|||
|
Protection Grade
|
IP68
|
|||
|

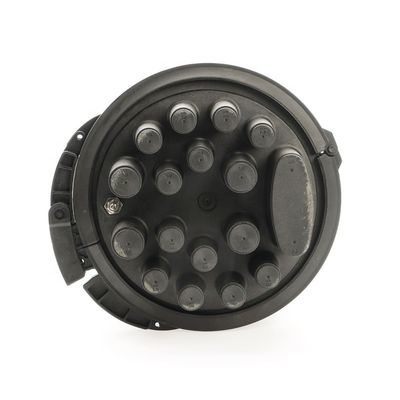

Cable Ports
|
Uncut
|
Oval
|
1
|
Φ10 - Φ25 mm
|
|
Branch
|
Round
|
4
|
Φ14 - Φ22 mm
|
|
|
12
|
Φ8 - Φ16 mm
|
|||
|
Fiber Splice Capacity
|
648
|
|||
|
Tray Capacity
|
12
|
|||
|
Tray Count
|
54
|
|||
|
PLC Splitter
|
1:4 Mini
|
2
|
||
|
1:8 Mini
|
1
|
|||
|
Weight (kg)
|
9.5 - 12.0
|
|||
|
Application
|
Aerial/ Wall Mounting/ Direct Burial
|
|||
|
Packing Type
|
Inner Carton
|
775×315×285 mm (1 PCS)
|
||
|
Outer Carton
|
-
|
|||
|
Model No.
|
GPJ09-5817-B
|
|||
|
Style
|
Dome/ Vertical
|
|||
|
Dimensions (H*D)
|
500 × Φ270
|
|||
|
Material
|
PP+GF
|
|||
|
Sealing Type
|
Heat Shrink, Mechanical Seal
|
|||
|
Protection Grade
|
IP68
|
|||
|
Cable Ports
|
Uncut
|
Oval
|
1
|
Φ10 - Φ25 mm
|
|
Branch
|
Round
|
4
|
Φ14 - Φ22 mm
|
|
|
12
|
Φ8 - Φ16 mm
|
|||
|
Fiber Splice Capacity
|
360
|
|||
|
Tray Capacity
|
12/ 6
|
|||
|
Tray Count
|
30/ 60
|
|||
|
PLC Splitter
|
1:4 Mini
|
2
|
||
|
1:8 Mini
|
1
|
|||
|
Weight (kg)
|
7.5 - 8.0
|
|||
|
Application
|
Aerial/ Wall Mounting/ Direct Burial
|
|||
|
Packing Type
|
Inner Carton
|
650×315×285 mm (1 PCS)
|
||
|
Outer Carton
|
-
|
|||
|
Model No.
|
GPJ09-5817-A
|
|||
|
Style
|
Dome/ Vertical
|
|||
|
Dimensions (H*D)
|
400 × Φ270
|
|||
|
Material
|
PP+GF
|
|||
|
Sealing Type
|
Heat Shrink, Mechanical Seal
|
|||
|
Protection Grade
|
IP68
|
|||
|
Cable Ports
|
Uncut
|
Oval
|
1
|
Φ10 - Φ25 mm
|
|
Branch
|
Round
|
4
|
Φ14 - Φ22 mm
|
|
|
12
|
Φ8 - Φ16 mm
|
|||
|
Fiber Splice Capacity
|
144
|
|||
|
Tray Capacity
|
12/ 24
|
|||
|
Tray Count
|
12/ 6
|
|||
|
PLC Splitter
|
1:4 Mini
|
2
|
||
|
1:8 Mini
|
1
|
|||
|
Weight (kg)
|
5.5 - 6.2
|
|||
|
Application
|
Aerial/ Wall Mounting/ Direct Burial
|
|||
|
Packing Type
|
Inner Carton
|
550×315×285 mm (1 PCS)
|
||
|
Outer Carton
|
-
|
|||
