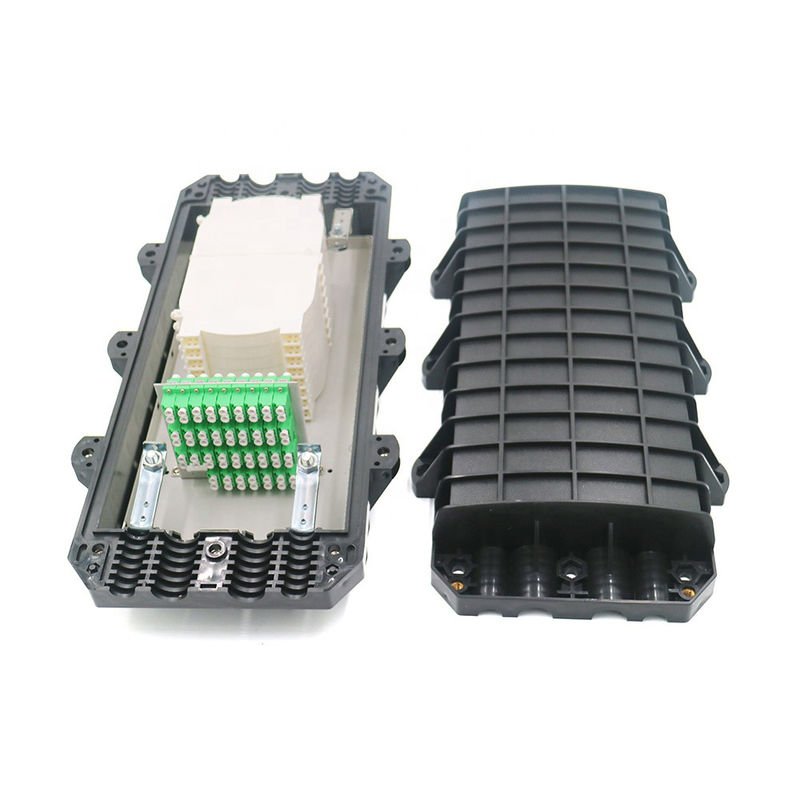

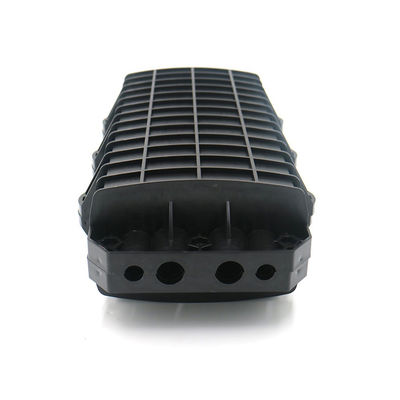

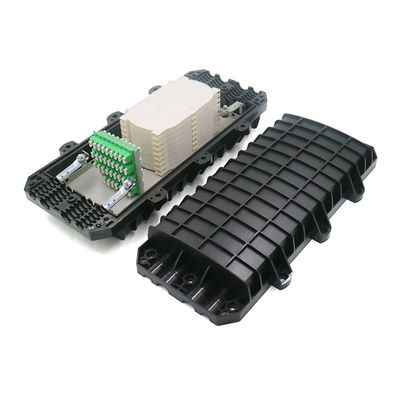

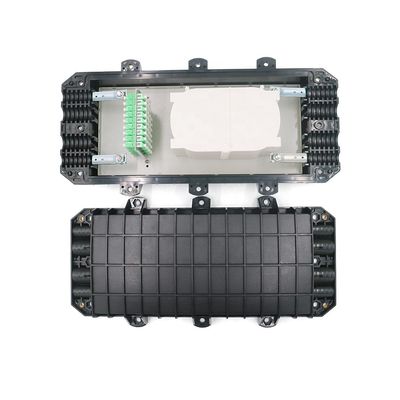

1X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure

1X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure
1X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure 1X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure 1X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure 1X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure

Ampliación de imagen :  1X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure

Datos del producto:
Place of Origin: Shenzhen ,China
Nombre de la marca: CY COM
Certificación: ISO9001:2015,SGS,ROSH
Model Number: GJS(04)-7C
Pago y Envío Términos:
Minimum Order Quantity: 20pcs
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: Western Union, T/T
Supply Ability: 500K/ Month
Contacto
Descripción detallada del producto
Splitter: 2pc of 1*16 Dimension: 465 x250x240mm
Type: Racks & Enclosure Adapter: SC Simplex and LC Duplex
Capacity of splice tray: 24 Core Max qty of splice tray: 8
Max capacity: 192 fibers Material: ABS
Resaltar:

1X16 Fiber Optic Joint Enclosure

,

ABS Fiber Optic Joint Enclosure

,

1X16 SC Simplex Joint Enclosure

1X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure



Fiber Optic In-line Closure 192 Core LC APC Joint Box Optical Fiber Cable Splice Closure GJS(04)7C


Description:
The product can be applied in the straight line and branch line(one into two, one into three)connections of optical cables within the diameter of 22mm(φ), all types and structures, when laid overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables

Features:

* All property indexes are in accordance with National YD/T814-1996 Standard.
* The case body is made from imported high-intensity engineering plastics(ABS) and formed the shape with mould plastics under high pressure. It is in the shape of HALF rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
* The body is sealed with silicon rubber, the cable entrance uses silicon block,reliable sealing,easy to open and maintain.
* 4 in 4 out,max capacity 192cores(single fibers)
* Optional cable loop(Φ7,Φ14,Φ20)enables user to choose different outer diameter according to actual conditions, It enhances the reliability of the cable entrance sealed.
* overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
* outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments.

Operations:
* choose the cable loop with proper outer diameter and let it go through the optical cable. Peel the cable , take off the outer and inner housing, as well as loose contract tube, and wash off the filling grease, leaving 1.1~1.6mfiber and 30~50mm steel core.
* fix the cable pressing card and cable, together with cable reinforce steel core. If the diameter of the cable is less than the diameter of cable loop, first bind the cable fixing point with adhesive tape till the diameter is enough, then fix it.
* lead the fiber into the melting and connecting tray, fix heat contract tube and heat melt tube to one of the connecting fiber. After melting and connecting the fiber, move heat contract tube and heat melt tube and fix the stainless (or quartz) reinforce core stick ,make sure the connecting point is in the middle of the housing pipe. Heat the pipe to make the two into one. Put the protected joint into the fiber-laying tray.(one tray can lay 24cores)
* lay the left fiber in the melting and connecting tray evenly, and fix the winding fiber with nylon ties. Use the trays from the
bottom up. After all the fiber has been connected, cover the top layer and fix it.
* position it and use the earth wire in accordance with the project plan.
* sealing the cable retainer nearing the inlet of splice closure and the joint of the cable rings with sealing tape. And close
the unused inlets with plugs, with exposed concave parts of the plug sealed with tapes. Then put sealing trips into the sealing groove on the sides of the shell and grease the concave part of inlet of the body between the two parts of the shell. Then close the two parts of the shell and tighten it with stainless steel bolts. The bolts should be screwed tightly with balanced force.
* according to the laying requirement, position and fix the hanging tool .

Model
SP-GJS-(04)7C
External Size
465 × 250× 240mm
Weight
4.7kg
optical fiber winding radius
≥40mm
extra loss of fiber tray
≤0.01dB
fiber length left in tray
≥1.6m
fiber capacity(single)
192 cores
working temperature
- 40℃ ~ + 70℃
lateral pressure-resistance
≥2000N / 10cm
shock-resistance
≥20N.m


1X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure 01X16 SC Simplex LC Duplex Fiber Optic Joint Enclosure 1
