Datos del producto:
Pago y Envío Términos:
|
| Splitter type: | 1x2 /1x4 / 1x8 Splitter | Apply port: | SC/FC/LC/ST |
|---|---|---|---|
| Capacity: | 14PCS Spliiter Patch Panel | Height: | 3U |
| Material: | Aluminum/Cold-roll steel | Color: | Black / Gray / White |
| Resaltar: | PLC Rack Mount Patch Panels,LGX Rack Mount Patch Panels,1x8 Rack Mount Patch Panels |
||

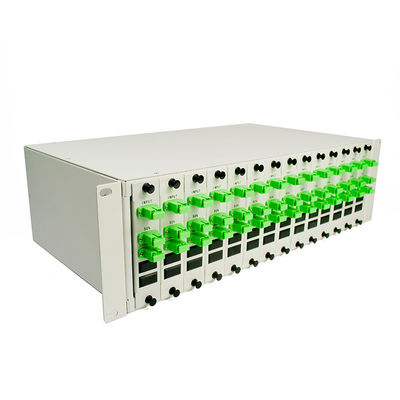

3U 19" Fiber Optical 1x2 1x4 1x8 LGX PLC Splitter Patch Panel /Rack Mount Fiber optic Chassis
Description:
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
|
Parameter/Type
|
Nx2(N=1or2)
|
Nx4(N=1or2)
|
Nx8(N=1or2)
|
Nx16(N=1or2)
|
Nx32(N=1or2)
|
Nx64(N=1or2)
|
|
Fiber
|
9/125 um SMF-28e or customer appoint
|
|||||
|
Operating Wavelength(nm)
|
1260~1650(nm)
|
|||||
|
Insertion Loss
|
≤3.9dB
|
≤7.1dB
|
≤10.3dB
|
≤13.3dB
|
≤16.3dB
|
≤19.8dB
|
|
Loss Uniformity(dB)
|
≤0.6dB
|
≤0.6dB
|
≤0.8dB
|
≤1.2dB
|
≤1.5dB
|
≤2.0dB
|
|
Polariation Dependent Loss
|
≤0.15dB
|
≤0.15dB
|
≤0.2dB
|
≤0.2dB
|
≤0.2dB
|
≤0.3dB
|
|
Return Loss
|
UPC≥50dB APC≥60dB
|
|||||
|
Directivity
|
≥55dB
|
|||||
|
Working Temperature(℃)
|
-40°C to +85°C
|
|||||

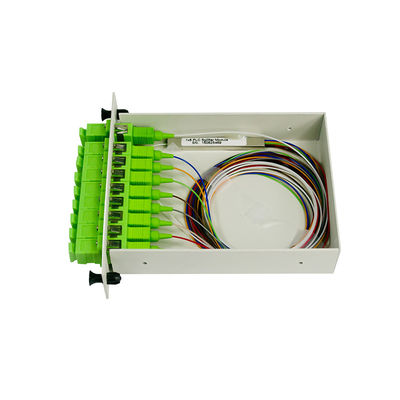

PLC splitter with SC APC connector

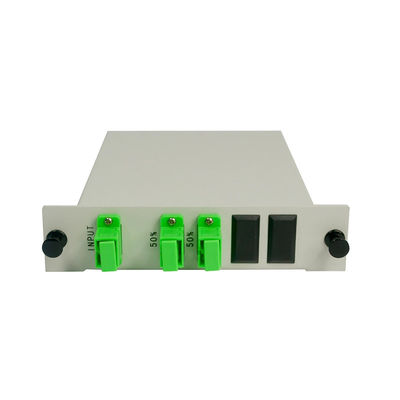

LGX PLC splitter with SC APC connector
