| Product Name:: | fiber optic transceiver module | Fiber Type:: | Dual Fiber Multimode |
|---|---|---|---|
| Wavelength:: | 850nm | Distance:: | 100m |
| Data Rate:: | 40Gbps | Fiber Interface:: | MPO/MTP |
| Resaltar: | QSFP+ sfp fiber module,multimode QSFP+ module,850nm QSFP+ module |
||

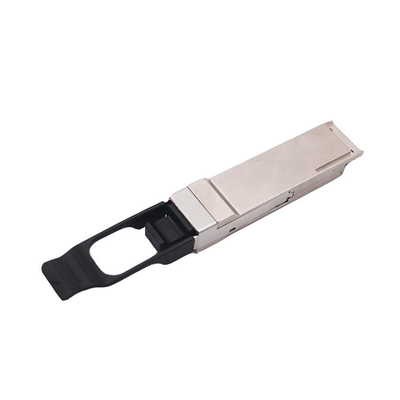

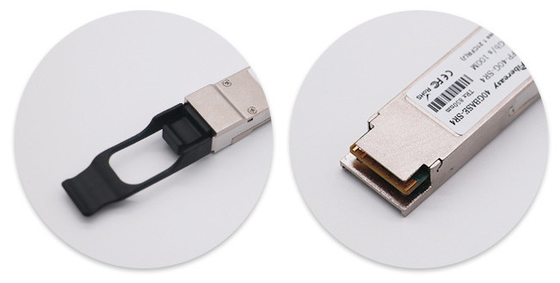

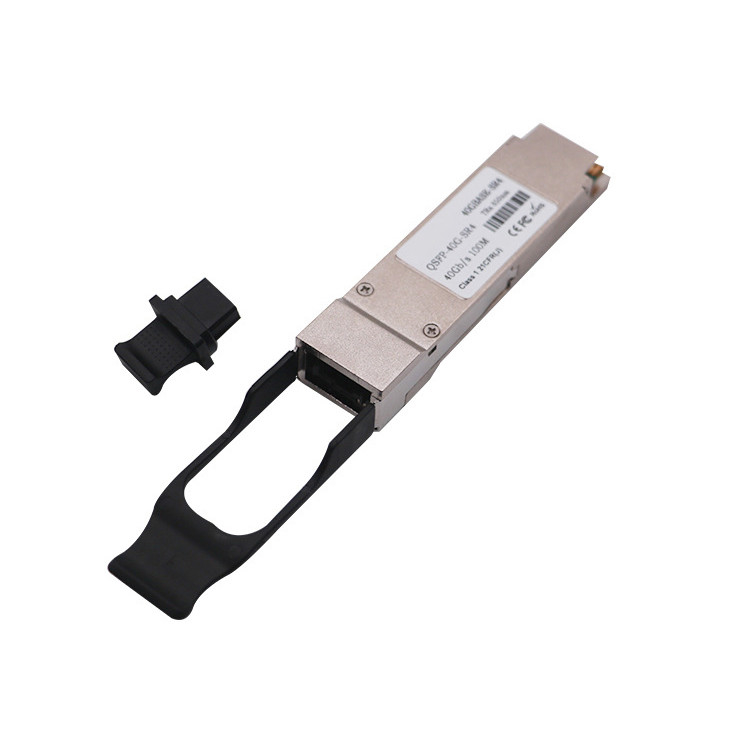

40G 100m 850nm Multimode QSFP+ Sfp Fiber Module
2020 hot sale 40G 100m 850nm multimode fiber optic transceiver module with mpo/mtp connector QSFP+
The optical module is an optoelectronic device that performs photoelectric and electro-optical conversion. The transmitting end of the optical module converts electrical signals into optical signals, and the receiving end converts optical signals into electrical signals. Optical modules are classified according to the packaging form, common ones are SFP, SFP+, SFF, Gigabit Ethernet Interface Converter (GBIC), etc.
Feature:
1. 10G,8G,4G,3G,2.5G,1.25G,155m all rate
2. SFP+,XFP,SFP,SFF,CSFP,are customizable
3. Perfectly compatible with famous switch,ZTE HUAWEI etc
4. DDM
5. Choice from Single mode,muli-mode
6. Choice from dual fiber LC,single fiber SC/LC
7. Low power consumption and high sensitivily
8. Programmable of no light alarm function
9. Complying with ROHS standard
10. The working temperature is up from -40c to ~+85c
11. Complying with Class 1 Laser,and the requirements of IEC60825-1
12. The label can be customized according to customer’s requirements
13. The excellent characteristic of overclocking
Specification:
| Product name | fiber optic transceiver module | Form factor | QSFP+ |
| Fiber type | dual fiber multimode | Wavelength | 850nm |
| Rate data | 40Gb/s | Transmission distance | 100/150m |
| Fiber connector | MPO/MTP | Operating voltage | 3.3v |
| Work temperature | 0℃~70℃ | DDM | yes |
