Datos del producto:
Pago y Envío Términos:
|
| Model Number: | Waterproof fiber optic pigtail | Fiber count:: | 2,4,6,8,12 Core optional |
|---|---|---|---|
| Fiber Type:: | G652D,G657A,OM3,OM4 | Jacket Material:: | LSZH PE sheath |
| Connector type:: | SC/APC or SC/UPC | Length: | 50M 100M 150M Or Customized |
| Resaltar: | Armoured Fiber Optic Pigtail,Waterproof Fiber Optic Pigtail,24 Core Outdoor Armoured Pigtail |
||

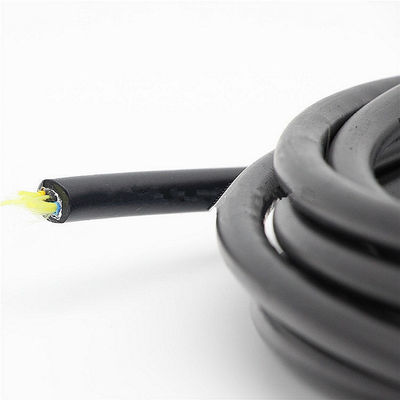

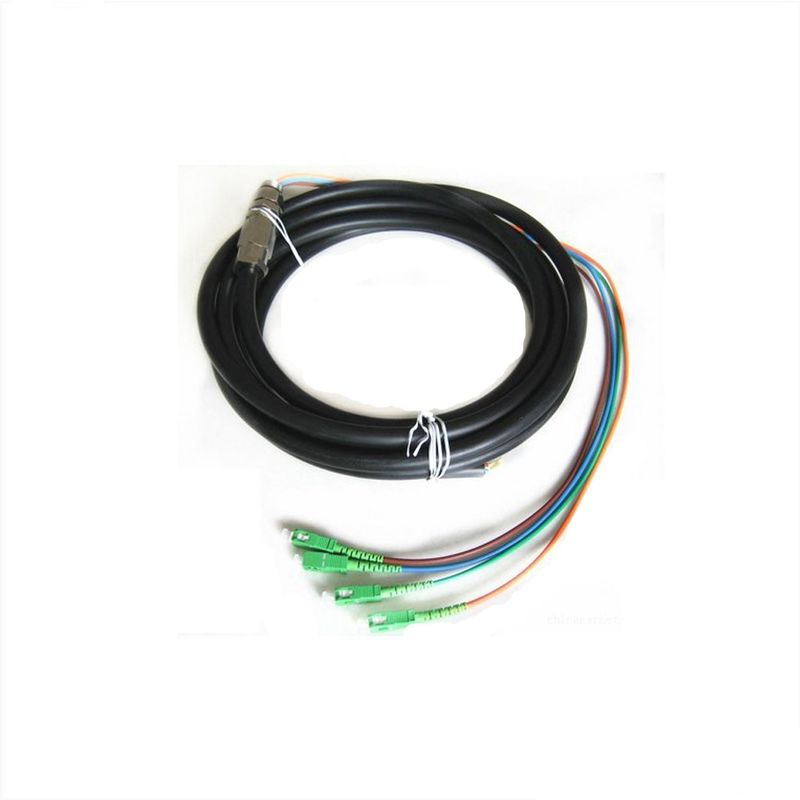

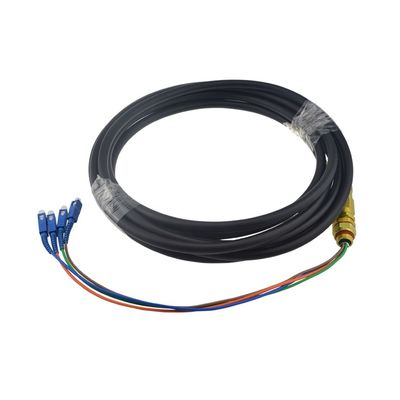

24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
2 4 6 8 12 24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail Patch Cord Jumper Wire Cable
Characteristics:
1. Fiber core: 2, 4, 6, 8,12 optional
2. Waterproof features & reliable performance
3. Pull & erosion resistance, good grounding
4. Low insertion loss, high return loss, excellent exchangeability, high stability
5. The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.
Application:
Optic fiber communications systems Optical CATV & LAN
Data & Communication System
Connection for main fiber and optical receiver.
Operating Temperature: -40°C to +85°C
| arameter: | Single mode | Multi mode(optional) |
| Insertion Loss | ≤0.3dB | ≤0.20dB |
| Return Loss |
≥45 dB (PC) ≥50 dB (UPC) ≥60 dB (APC) |
≥35 dB (PC) ≥45 dB (UPC) |
| Wavelength | 1310nm,1550nm | 850nm,1310nm |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Cord diameter | 3.0mm | |
| Connector Available | SC,FC,ST,LC,MU,MTRJ | |
| Fiber core available | 4,6,8,12,24 fiber… | |
