Datos del producto:
Pago y Envío Términos:
|
| Cable color: | Colors | Connector: | SC,FC,LC |
|---|---|---|---|
| Fiber Count:: | 4/6/8/12 Fibers | Return loss: | >=50 dB |
| Jacket material: | PVC.LSZH | Operating temperature: | -40 to 75℃ |

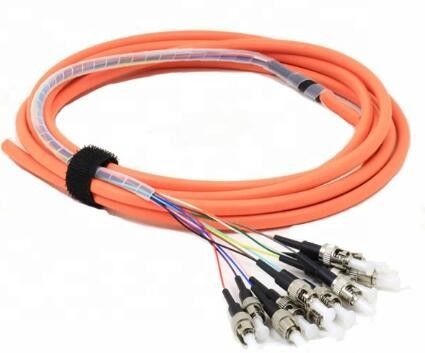

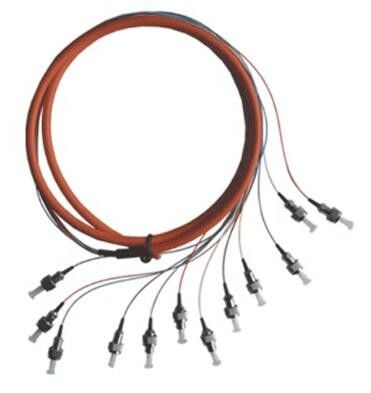

| Resaltar: | OM3 FC UPC Pigtail,OM2 FC UPC Pigtail,OM1 FC UPC Pigtail |
||
Parameters
| Parameter | LC,SC,ST,FC | ||
| SM | MM | ||
| UPC | APC | UPC | |
| Operating Wavelength(nm) | 1310/1550 | 850/1300 | |
| Insertion Loss(dB) | ≤0.20 | ≤0.20 | ≤0.20 |
| Return Loss(dB) | ≥55 | ≥65 | ≥35 |
| Repeatability Loss(dB) | ≤0.1 | ||
| Interchangeability Loss(dB) | ≤0.20 | ||
| Repeat Piug-pull Times | ≥1000 | ||
| Tensil Strength(N) | ≥100 | ||
| Durability Loss(dB) | ≤0.20 | ||
| Operating Temperature(℃) | -40℃~ +75℃ | ||
| Storage Temperature(℃) | -40℃~85℃ | ||
